Thunderbolt™ 4 – USB4 Dock Pro

Thunderbolt™ 4 – USB4 Dock Pro

Overview:

The Thunderbolt 4 / USB4 Dock Pro is a pro-level docking station designed for demanding
high-productivity workflow needs based on Intel Thunderbolt 4 Goshen Ridge controller.
It is not only for Thunderbolt 4 users, this versatile device is backwards compatible with
Thunderbolt 3, USB 2.0, VESA Alternate mode (MFDP) and USB4, also working on both
Windows and Mac systems.

The dock provides full powered solution with dynamic PD up to 96W for your laptop charge.

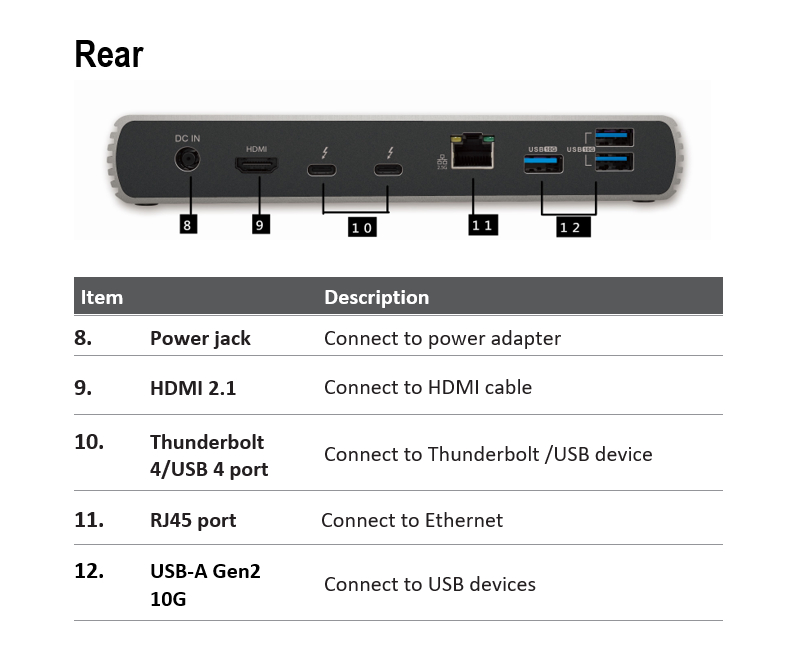

The equipped Thunderbolt4/USB4 downstream ports can connect up to Thunderbolt and
USB-C peripherals with optimal performance of lightening-fast 40Gbps transfer speed and
high resolution video output, you can also enjoy single display up to 8K@30Hz via HDMI 2.1
and 2.5GbE Ethernet port, the features outfitted let creative professionals and gamers to
handle any challenges they encounter in a production workflow.

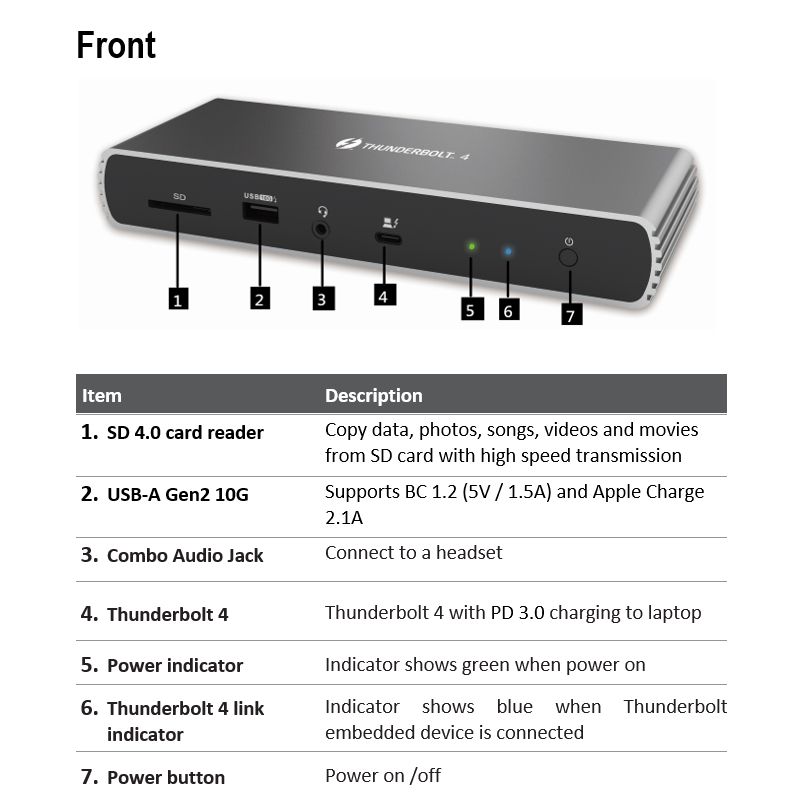

The dock also offers legacy interfaces such as USB-A 3.1 10G ports with BC 1.2 / Apple Charge,
SD 4.0 card reader and Hi-RES headset Audio for maximum connectivity.

Features:

•  Thunderbolt 4 technology
• Downstream port
  – Thunderbolt 4 / USB4 x 2
  – HDMI 2.1 x 1 up to 8K30
  – USB-A 3.1 10G x 4 with BC 1.2 (5V/1.5A) and Apple Charge 2.1A x 1
• Upstream PD charging:
  – Supports 5 /9 /15 / 20V@4.8A
  – Up to 96W
• RJ45 2.5 Gigabit Ethernet
• Supports SD 4.0 card reader
• Hi-RES Headset jack

Package Contents:

• Thunderbolt 4 / USB4 Dock Pro x1
• Thunderbolt Cable x1
• Power Adapter x1
• User Manual x1

System Requirements:

Supported Operating Systems
– Windows 10
– Mac OS Big Sur 11.2 or later

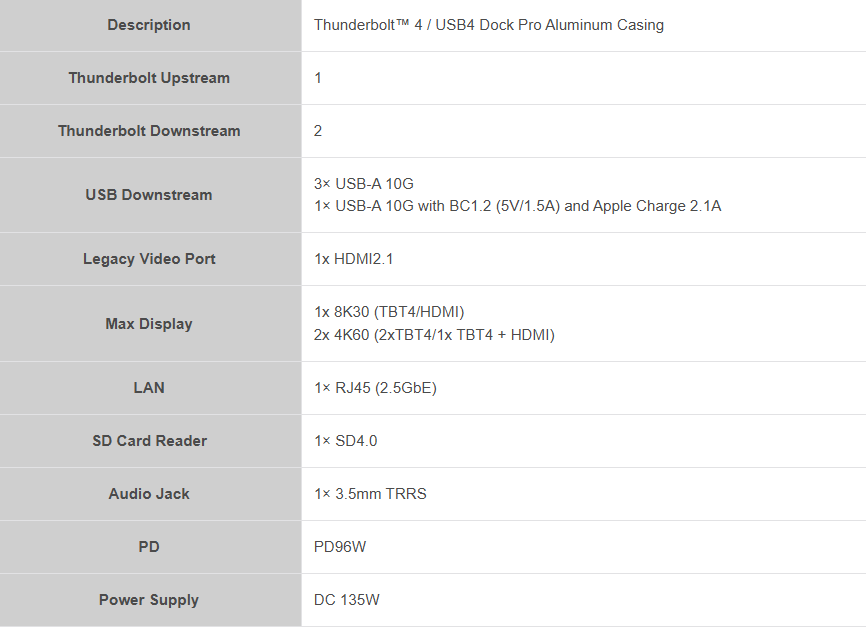

Specification:

• User Interface Upstream: Thunderbolt / USB-C port supports up to PD 96W
• User Interface Downstream:
  – Thunderbolt 4/ USB 4 x2
  – USB-A 3.1 Gen 2 x3
  – USB-A 3.1 Gen 2 x1, with BC1.2 (5V/1.5A) and Apple Charge 2.1A
• Video Output: HDMI 2.1 x1 Up to 8K@30Hz
• Ethernet: RJ45 Gigabit Ethernet x1 supports MAC Address pass
  through 10/100/1000/2500Mbps
• Card Reader: SD 4.0 x1
• Audio: Hi-RES Headset jack x1
• Power Mode: Self-powered
• Power Adapter:
  – Input: AC 100-240V
  – Output: DC 20V/6.75A
• Working Environment:
  – Operation Temperature: 0~35 degree
  – Storage Temperature: -20~70 degree
• Compliance: CE, FCC, VCCI, RCM
