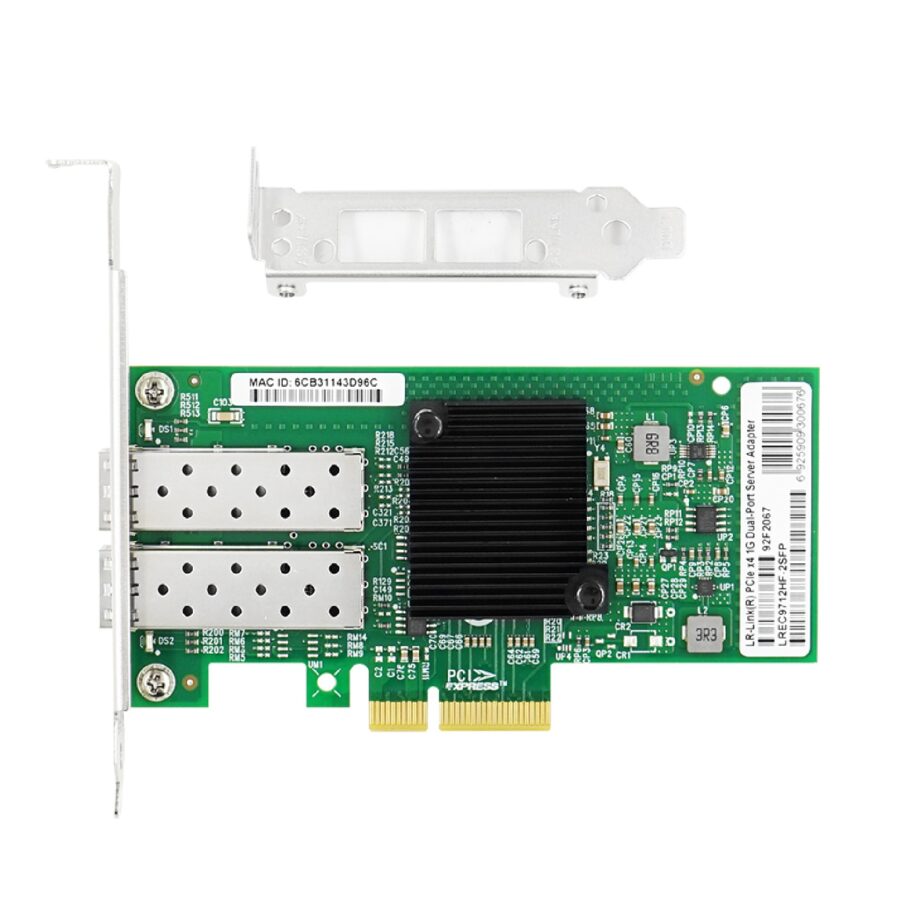

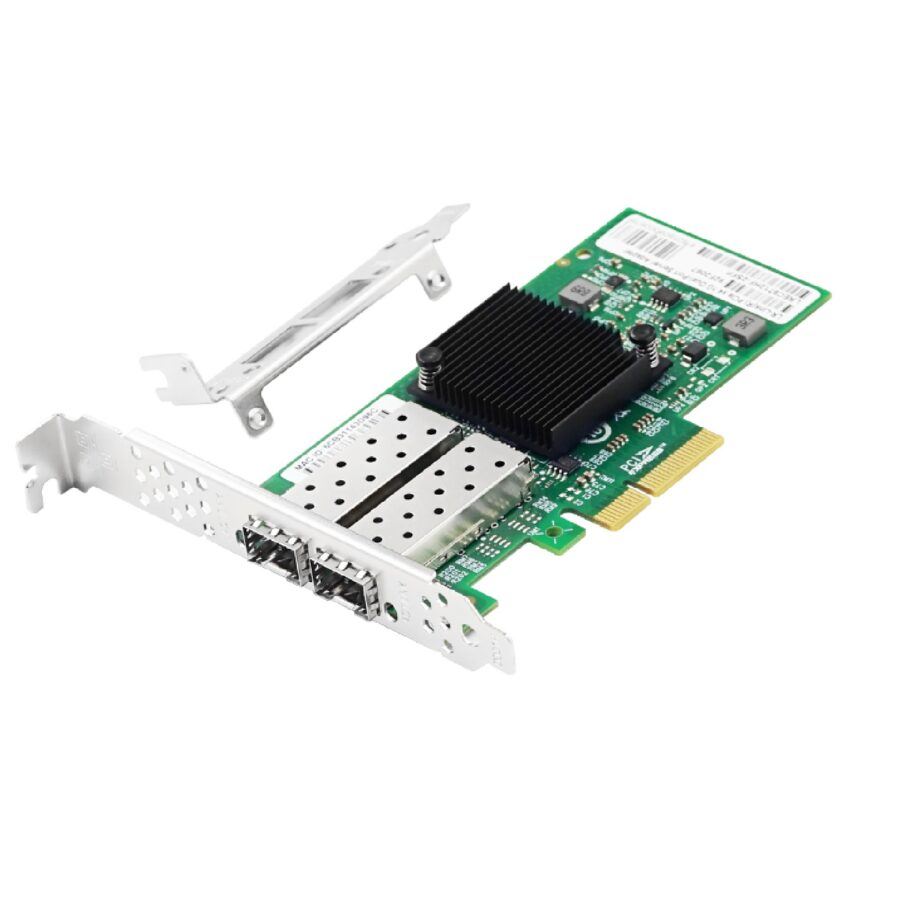

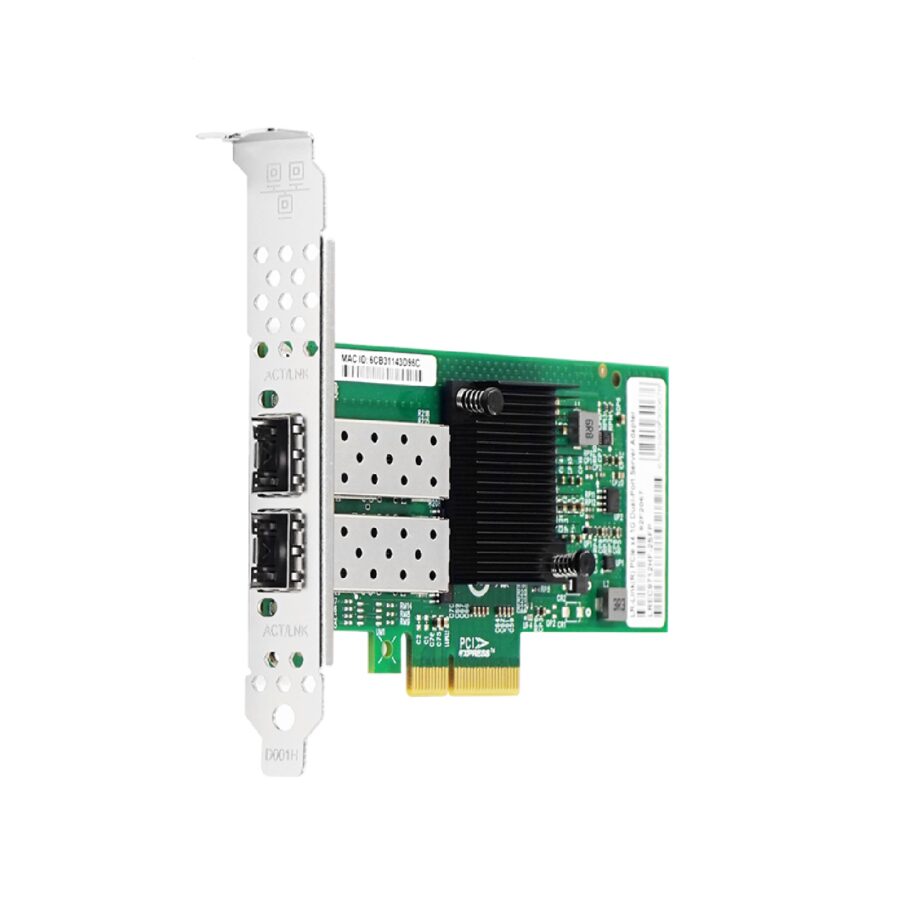

High-performance servers often struggle with I/O bottlenecks when handling critical network
applications and multiple virtualized networks. The LREC9712HF-2SFP addresses this by
providing dedicated PCIe bandwidth for fibre-optic connectivity, ensuring system stability
without consuming excessive bus resources.
Built on the Intel I350-AM2 chipset, this adapter delivers 1Gbps data rate per port via two SFP
slots. Hardware acceleration handles TCP/UDP/IP checksum splitting and segmentation tasks,
significantly reducing CPU overhead and enabling more resources for core application processing.
Ideal for enterprise environments requiring fault tolerance, the card supports link aggregation
and automatic traffic routing during port failures. Compatible with various Gigabit SFP modules,
it allows flexible deployment across different transmission distances while maintaining reliable
connectivity for demanding server infrastructures.
Controller
LREC9712HF-2SFP – Controller Specifications
| Controller Chip |
Intel I350-AM2 |
Bus/Interface
LREC9712HF-2SFP – Bus/Interface Specifications
| Bus Type |
PCIe v2.1 (5.0GT/s) x4 |
| Bracket Height |
Low Profile & Full Height |
Ports
LREC9712HF-2SFP – Ports Specifications
| Connector |
2*1G SFP |
| Data Rate per Port |
1Gbps |
Power
LREC9712HF-2SFP – Power Specifications
| Power Supply |
PCIe |
| Max Power Consumption |
3.3W |
Protocols
LREC9712HF-2SFP – Protocols Specifications
| Protocol Support |
IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3az |
Features (Yes)
LREC9712HF-2SFP – Features (Yes) Specifications
| Feature Support (Yes) |
PXE, DPDK, iSCSI |
Features (No)
LREC9712HF-2SFP – Features (No) Specifications
| Feature Support (No) |
WoL |
Environment
LREC9712HF-2SFP – Environment Specifications
| Operating Temperature |
0℃ to 55℃ (-32 ℉ to 131 ℉) |
| Storage Temperature |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 ℃ |
