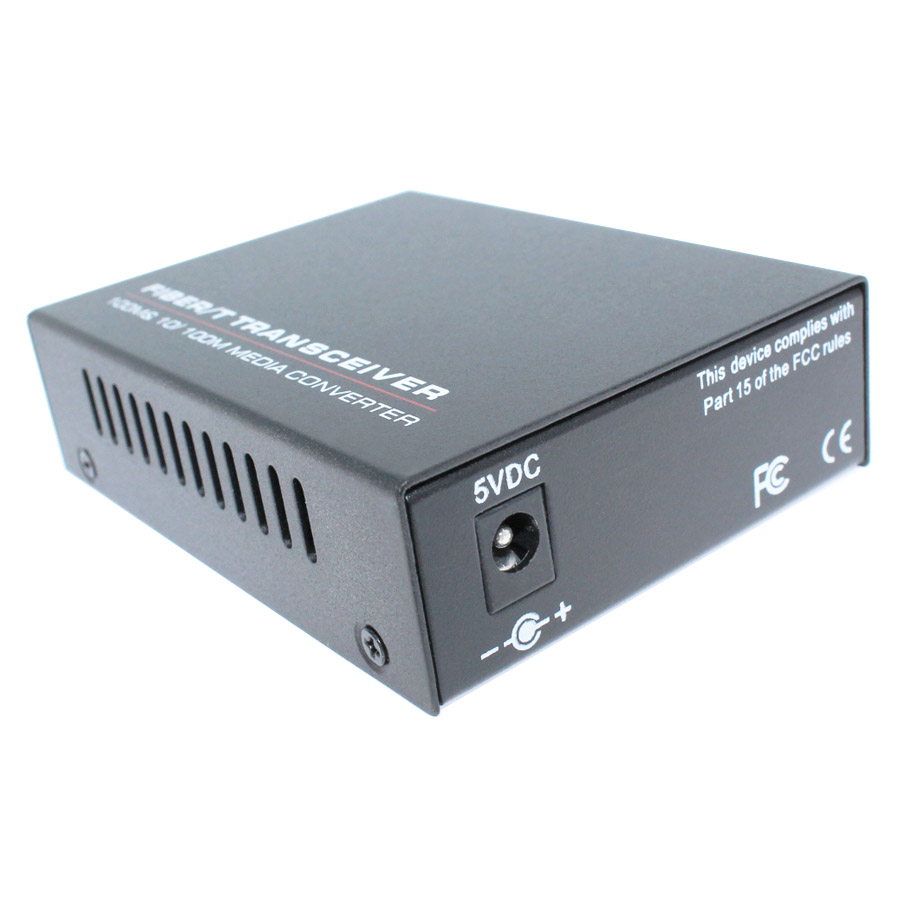

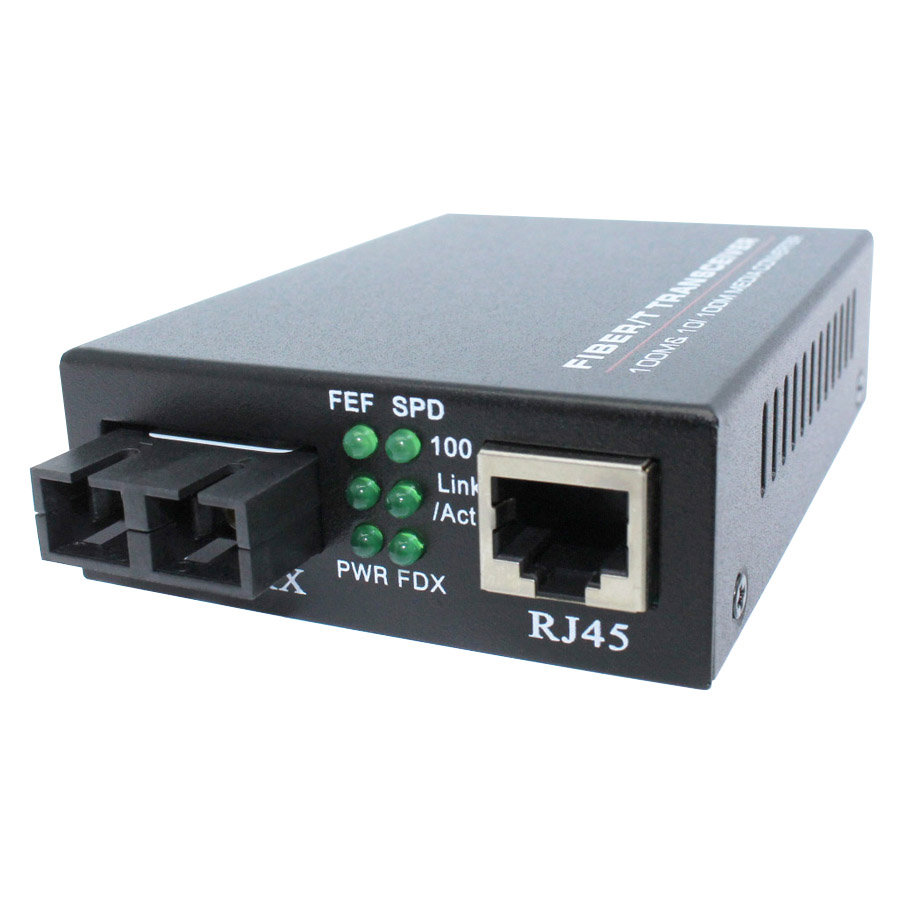

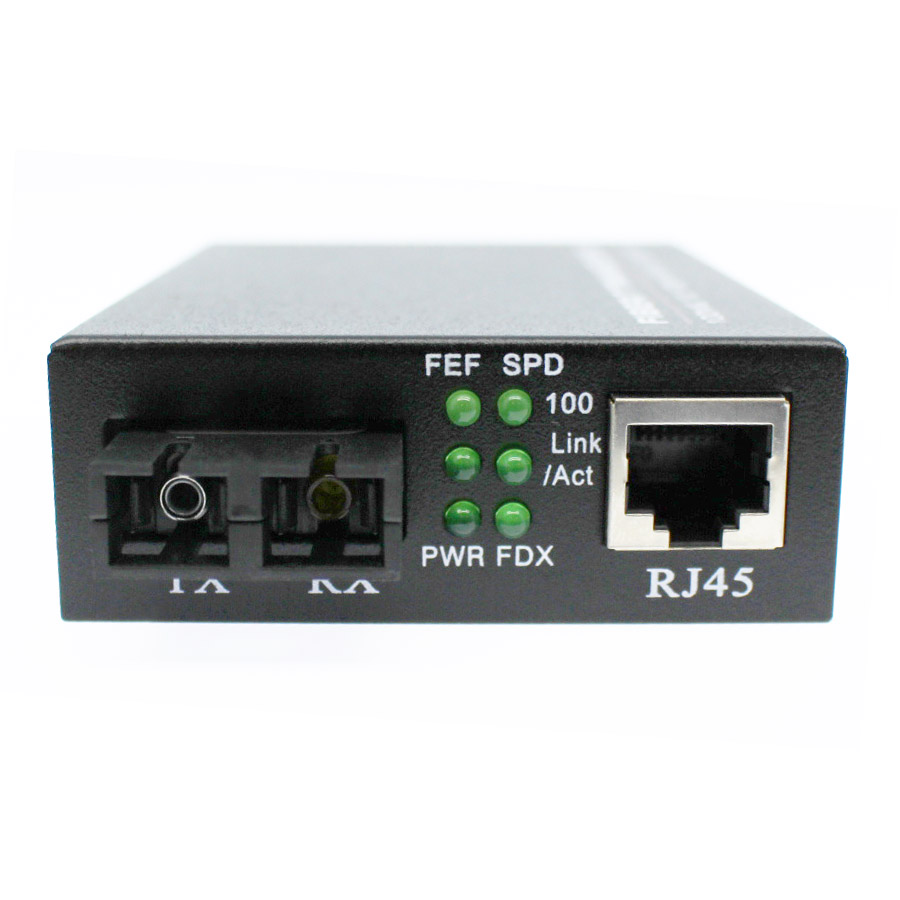

Luggar Duplex Media Converter – 10/100TX-100Base (SC) SM

Description:

Media Converter, 10/100Mbps RJ45 to 100M multi-mode SC fiber

Features:

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
• Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
• Extends fiber distance up to 2km

Product Details:

Color: Black

Connector Type: SC Single Mode

Speed: 100Base

Max. Distance: 20km

Wavelength: 1310nm

Humidity: 5% to 90%

Environment: Operating Temperature: 0°C to +60°C

Dimensions: 40 x 110 x 140mm

Power Supply: External 5V DC 2A (Included)

IEEE: 802.z 1000BaseX, 802.3 10BaseT, 802.3u 100BaseTX, 802.3ab 1000BaseT, 802.3x Flow Control

Compliance: RoHS Compliant, UL Listed

Marks: FCC and 15 Class A and CE Mark
