תיאור המוצר
מרחיק טווח HDMI המאפשר העברת אות וידאו ואודיו באיכות גבוהה עד למרחק
של 60 מטר באמצעות כבל CAT5e/6. המערכת כוללת יחידת משדר ויחידת מקלט,
ומיועדת להצבה בסמוך למקור השידור ולמסך התצוגה. תומך ברזולוציות שונות עד
1080P ובפורמטי שמע מתקדמים, עם התקנה פשוטה ללא צורך בכיוונון ידני.
מתאים לשימוש במערכות תצוגה, מולטימדיה והעברת תוכן למרחקים ארוכים.

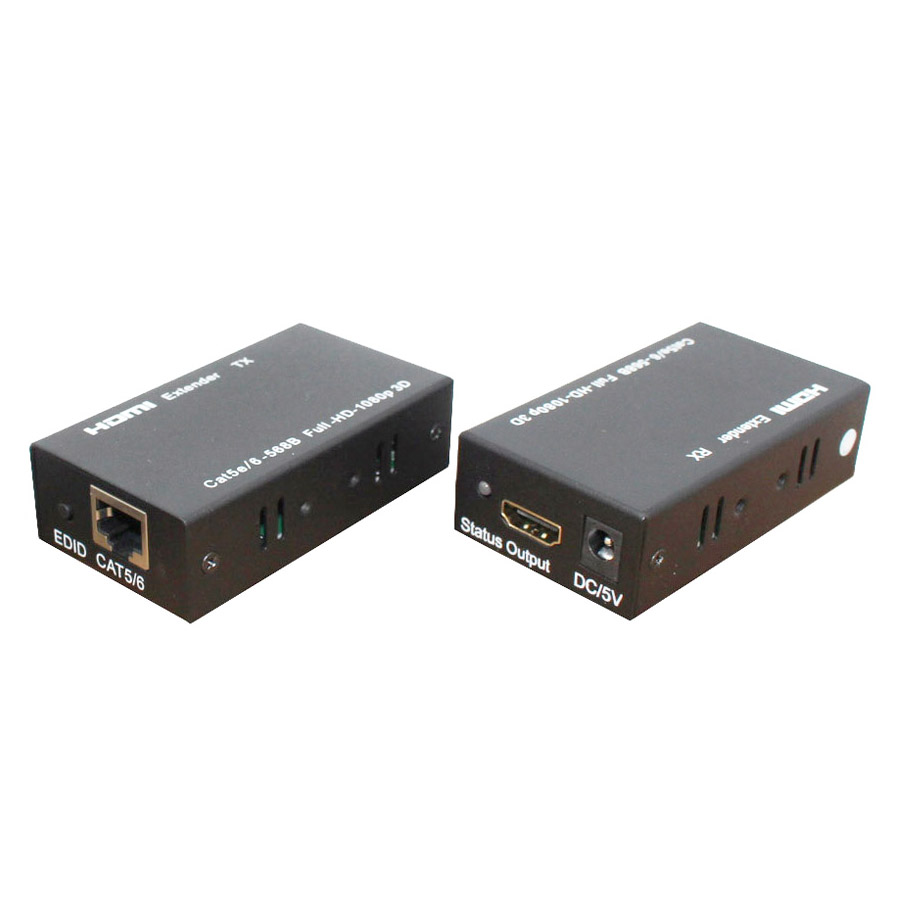

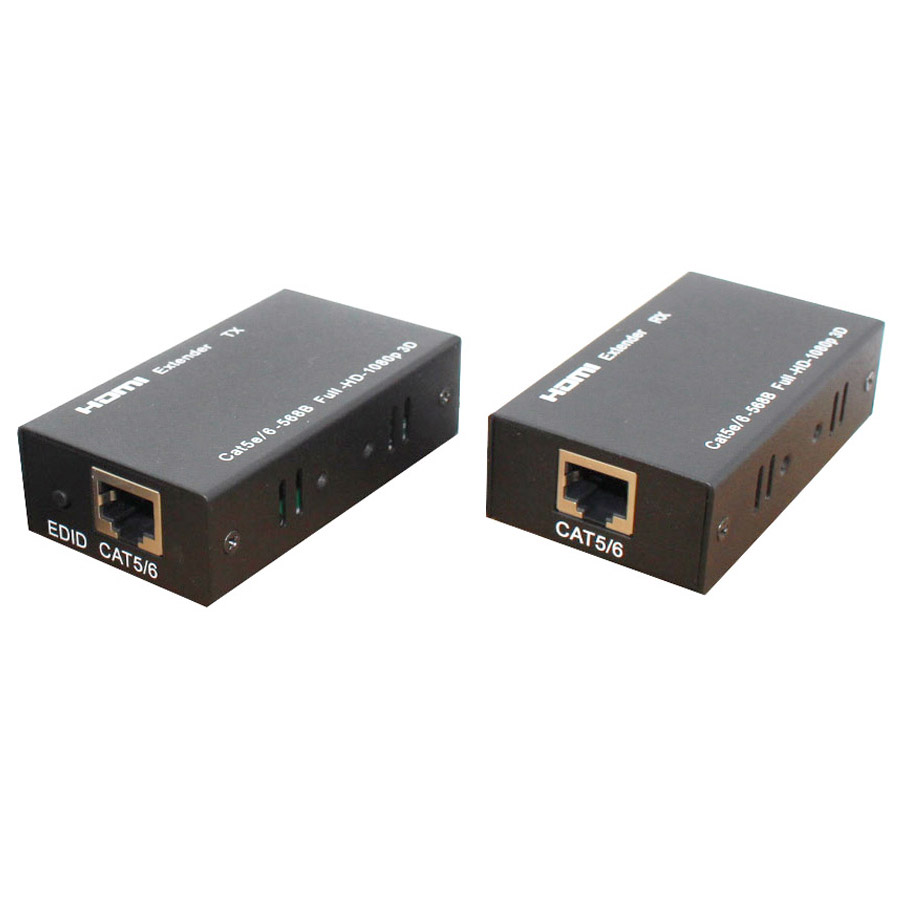

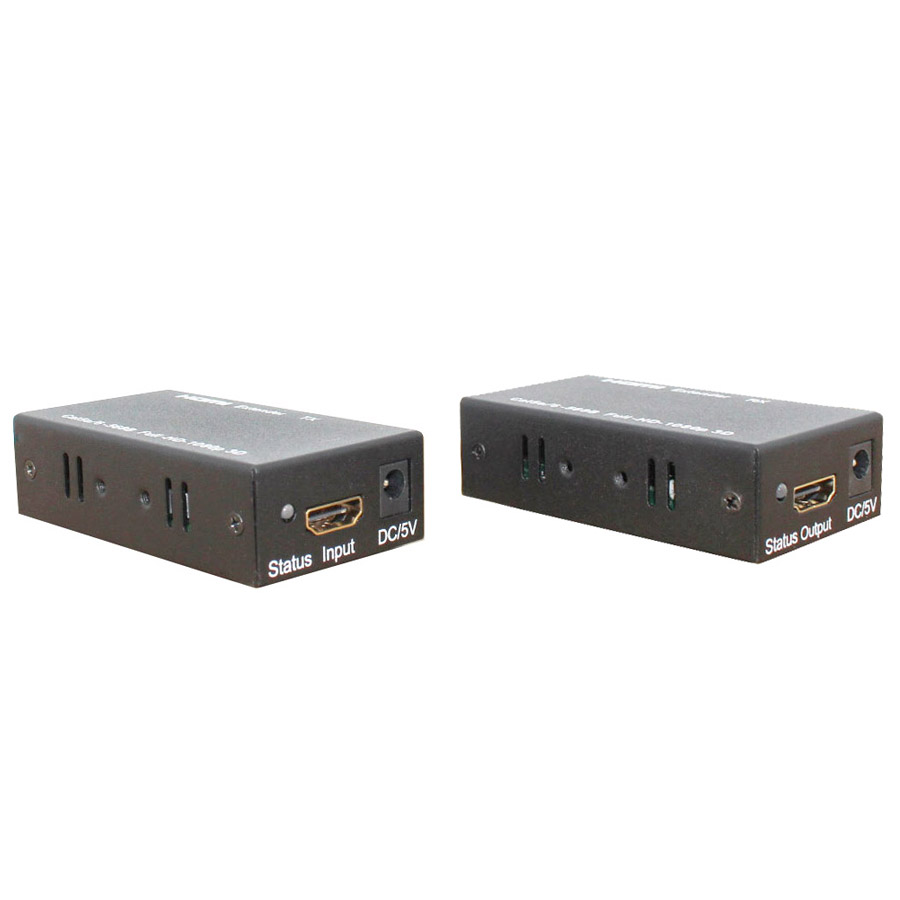

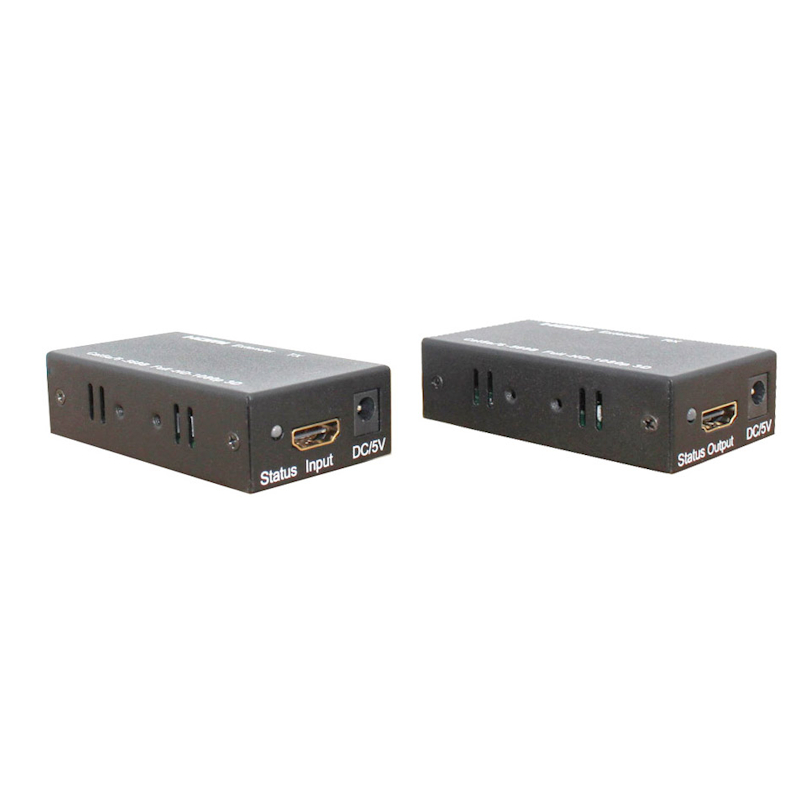

HDMI Extender, 1080P, 3D, up To 60m
Features:
The HDMI Extender use cat-6(recommended) cables up to 60 metres instead of HDMI cable to
transmit high definition signal, for cutting down cost. Long distance transmission of high definition
is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed
to supply for long distance transmission of high definition signal.
to your HDTV display.run a single cat-5e or cat-6 cable between the transmitter and receiver.when
the source,the receiver and the display are all powered on and connected ,the auto-adjusting
extender requires no manual turning or settings.
Specification:
- Length of. CAT-6 cable between Rx and TX: Up to 60 metres
- HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support audio format input: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- HDMI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support audio format output: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Max transmission bandwidth: 5.1Gbps
- Input Video signal: 0.5~1.5Volts p-p
- Output DDC signal: 5Volts p-p (TTL)
- Input/Output HDMI1.3 cable distance: ≤5m AWG26 HDMI 1.3 standard cable
- Max working current: 600mA
- Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- Operating Temperature range: (-15 to 55°C)
- Operating Humidity range: 5 to 90%RH (No Condensation)
- Dimension (L x W x H): 82x45x21 (mm)
- Weight: 510g
package content:

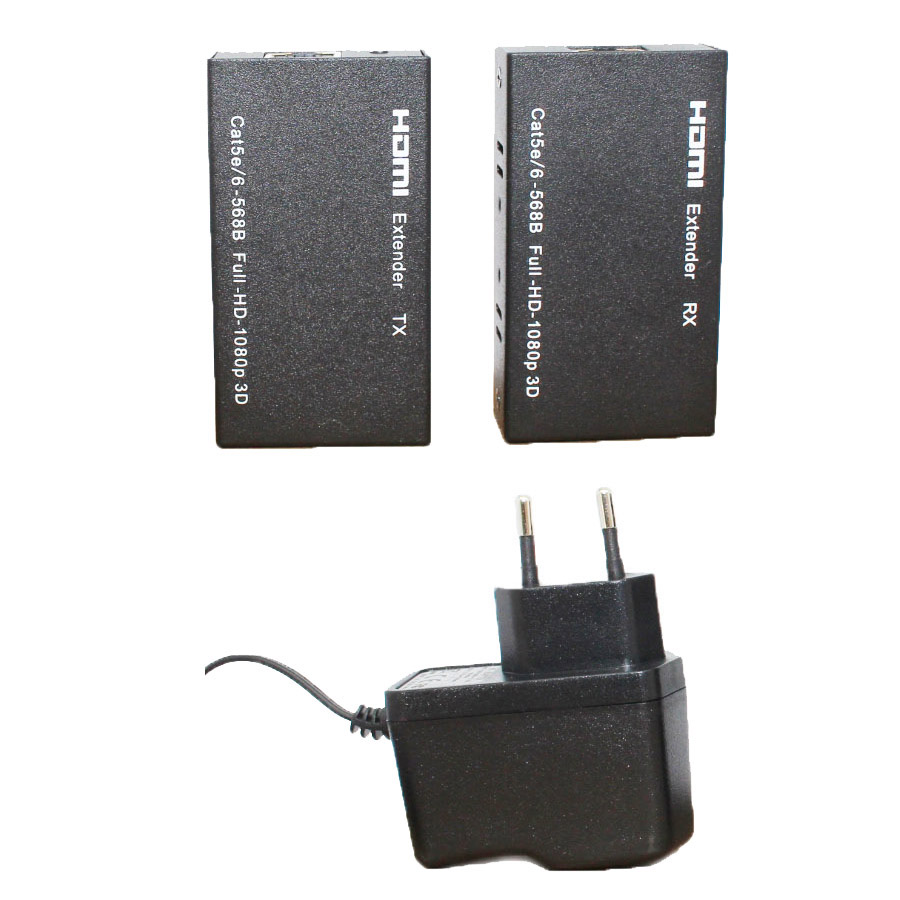

1) Main unit No. 1 Sender , Main unit No. 2 Receiver
2) Two pieces of 5V DC Power Supply.
3) User’s Manual
מידע
| מחבר | HDMI |
| רזולוציה | עד 1080p |
| מאריך עד טווח | 60 מטר |
| מידות מוצר | 82×45×21 מ״מ |
| משקל המוצר | 510 גרם |
| צבע | שחור |
| יצרן / מותג | Gold Touch |
