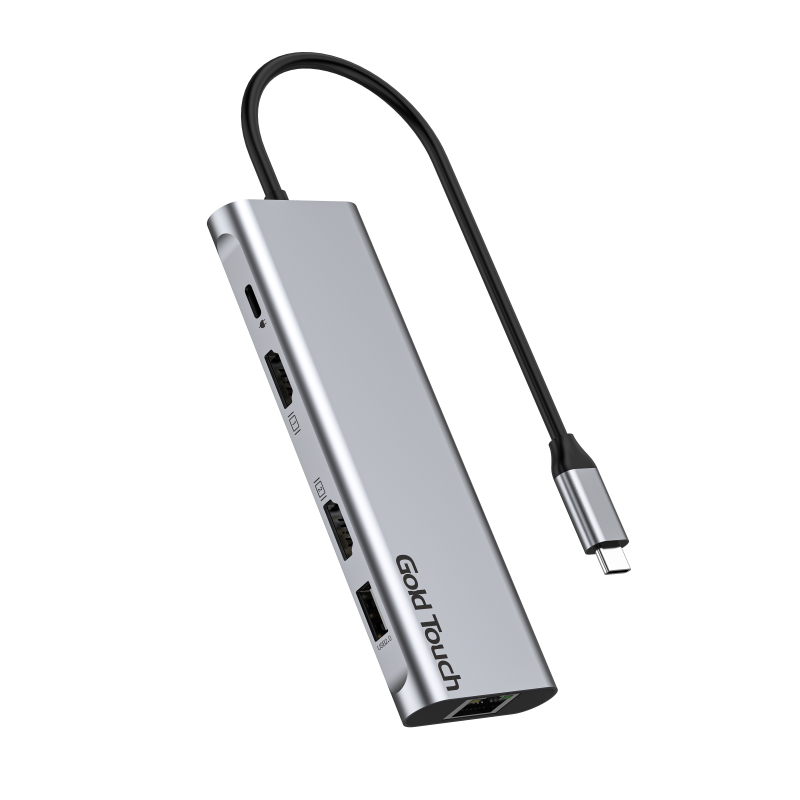

Type: USB Type C Super Performance Docking Station
Color: Silver
Overview:
Super Performance Multi Ports USB Type C Docking Station
Power Delivery 100W (20V@5A)

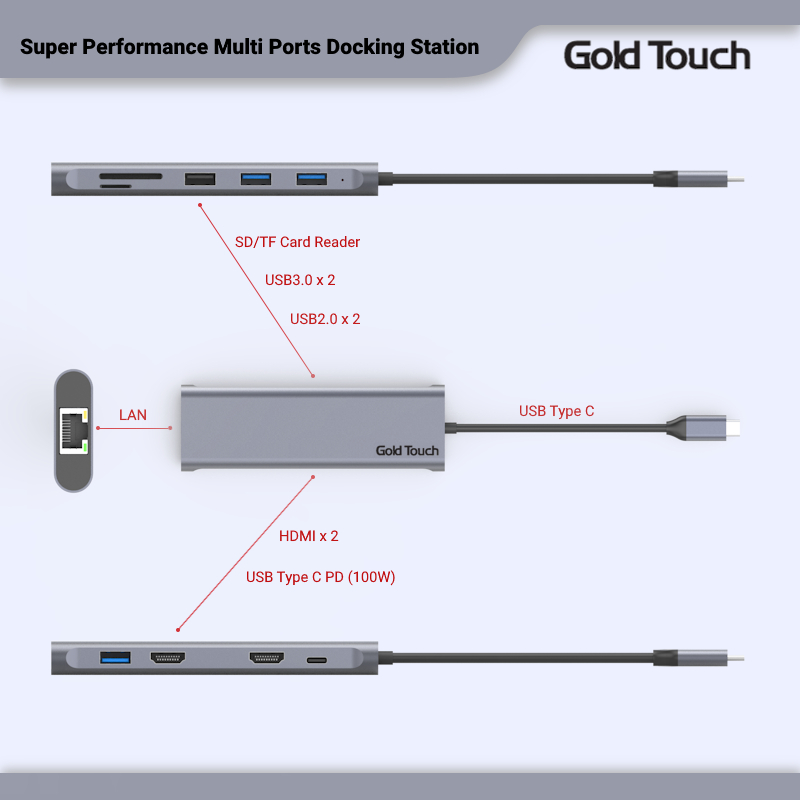

2x HDMI, LAN Giga, 2x USB3.0, 2x USB2.0, SD/TF Card Reader
Specifications:
- Two HDMI Port 4K@30Hz
- Support Multi-stream Transport for Windows
- Support Only Mirror Display Transport for Mac OS – includes Apple M1
- Power Delivery Up To 100W
Specifications: | ||
USB Type C PD | Power Delivery 2.0 Support 100W (20V@5A) | |
HDMI 1 | 3840×2160 @30Hz | Single video output |
HDMI 2 | 3840×2160 @30Hz | |
HDMI 1&2 | 1920×1080 @60Hz | Dual Video Output |
USB3.0 x2 | 5Gbit/s | |
USB2.0 x2 | 480 Mbit/s | |
LAN | 10/100/1000BASE-T Network | |
Card Reader | USB2.0 SD/TF Card Reader, Support SDXC Up To 2TB | |
System Support | Mac OS X 10.X and future releases Note: On a mac operating system the product does not support extended mode. | |
Windows 8/10 32 and 64 bit and future releases |
Video Matrix:
USB-C DP Alt Mode (DP1.2 HBR2) MST | |||
Port | HDMI 1 | HDMI 2 | Remark |
1 | 3840×2160/30Hz | / | Single video output |
2 | / | 3840×2160/30Hz | |
3 | 1920×1080/60Hz | 1920×1080/60Hz | Dual video output |
