When virtual machine density increases I/O bottlenecks in data centers, efficient network processing
becomes critical for maintaining application performance. The LREC9802BF-2SFP+ network adapter
addresses this challenge with hardware-accelerated virtualization support.

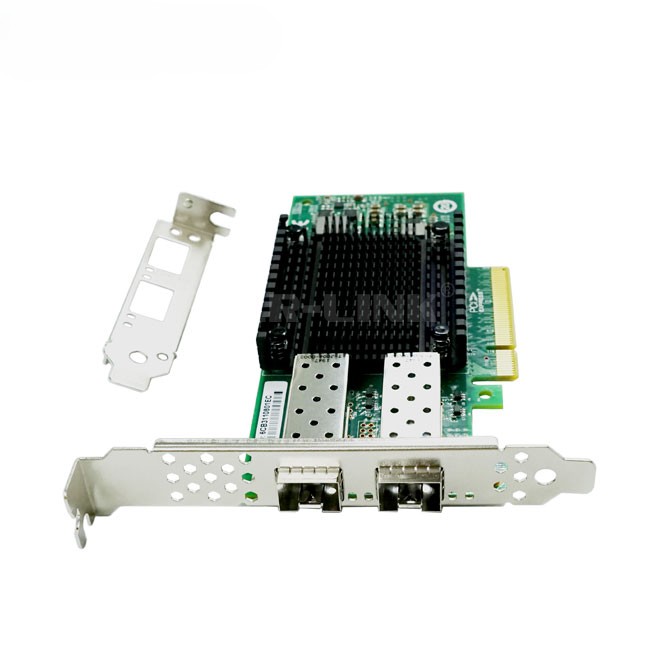

Built on the Intel 82599 controller, this dual-port 10G SFP+ card delivers 20Gbps aggregate bandwidth
via PCIe 2.0 x8 interface, enabling high-throughput connectivity without slot congestion. Features like
VMDq and SR-IOV offload sorting tasks from the host CPU, significantly improving VM scalability and
reducing latency in multi-tenant environments.
Ideal for unified LAN/SAN traffic and cloud infrastructure, this adapter supports FCoE and iSCSI to
consolidate network and storage flows. With broad OS compatibility and low 8.9W power consumption,
it offers reliable, energy-efficient 10G deployment for evolving virtualized data centers.
Controller
LREC9802BF-2SFP+ – Controller Specifications
| Controller Chip |
Intel 82599 |
Bus Interface
LREC9802BF-2SFP+ – Bus Interface Specifications
| Bus Type |
PCIe v2.0 (5.0GT/s) x8, compatible with x16 |
Ports
LREC9802BF-2SFP+ – Ports Specifications
| Port Count |
2 |
| Connector Type |
10G SFP+ |
| Data Rate Per Port |
1/10Gbps |
| Cable Medium |
Fiber Optics |
| Supported Cable Types |
1000BASE-SX, 1000BASE-LX, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER |
Power
LREC9802BF-2SFP+ – Power Specifications
| Max Power Consumption |
8.9W |
| Power Supply |
PCIe |
Protocol Support
LREC9802BF-2SFP+ – Protocol Support Specifications
| IEEE Standards |
IEEE 802.3ae, IEEE 802.3x, IEEE 802.1AS, IEEE 802.1Q, IEEE 802.3AD, IEEE 1588, IEEE 802.3az |
Feature Support (Yes)
LREC9802BF-2SFP+ – Feature Support (Yes) Specifications
| Supported Features |
PXE, iSCSI (Settable), FCoE, DPDK, RSS, Jumbo Frames, PCI-SIG SR-IOV |
Environment
LREC9802BF-2SFP+ – Environment Specifications
| Operating Temperature |
0℃ to 55℃ (32℉ to 131℉) |
| Storage Temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification |
FCC, CE, RoHS |
Physical Features
LREC9802BF-2SFP+ – Physical Features Specifications
| Bracket Height |
Low Profile & Full Height |

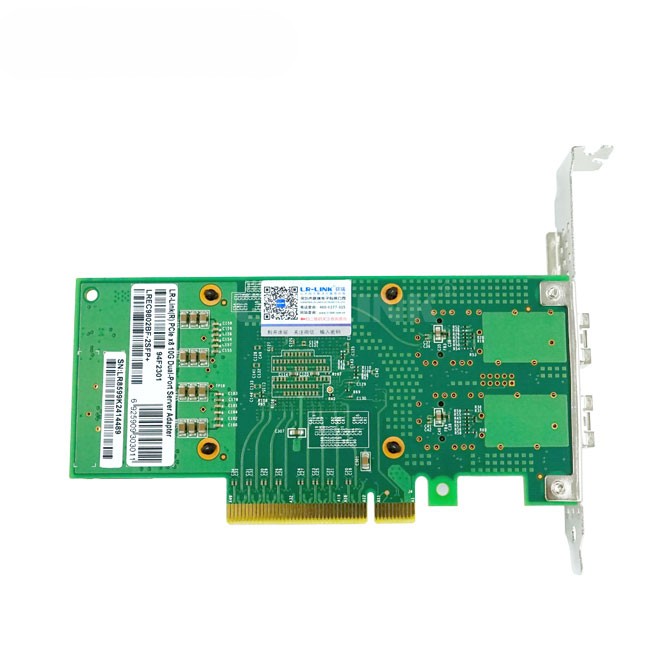

| PCB Size (LxWxH) |
138.7 x 68.9 x 1.6mm |
| Package Size (LxWxH) |
222 x 147 x 28mm |
| LED Indicators |
LINK Orange Link+ Green Link (1G), ACT Orange Link+ Green Blink (1G), LINK Green Link+ Green Link (10G), ACT Green Link+ Green Blink (10G) |
System Support
LREC9802BF-2SFP+ – System Support Specifications
| Windows Client |
Windows 7, 8/8.1, 10, 11 |
| Windows Server |
Windows Server 2003/R2, 2008/R2, 2012/R2, 2016/R2, 2019/R2, 2022/R2 |
| Linux |
Stable Kernel version 2.6.x/3.x/4.x or later, CentOS/RHEL 6.x/7.x or later, Ubuntu 14.x/16.x or later |
| FreeBSD |
FreeBSD 9/10/11 or later |
| UOS |
UOS V20 or later |
| VMware |
Vmware ESX/ESXi 5.x/6.x or later |
