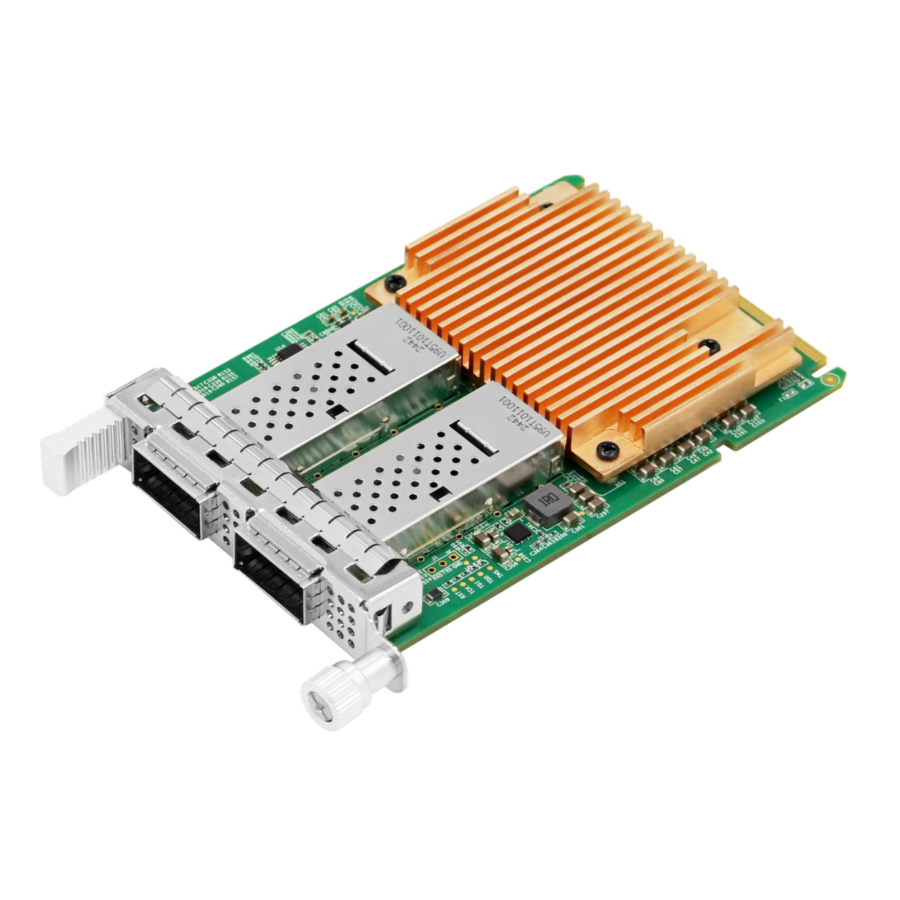

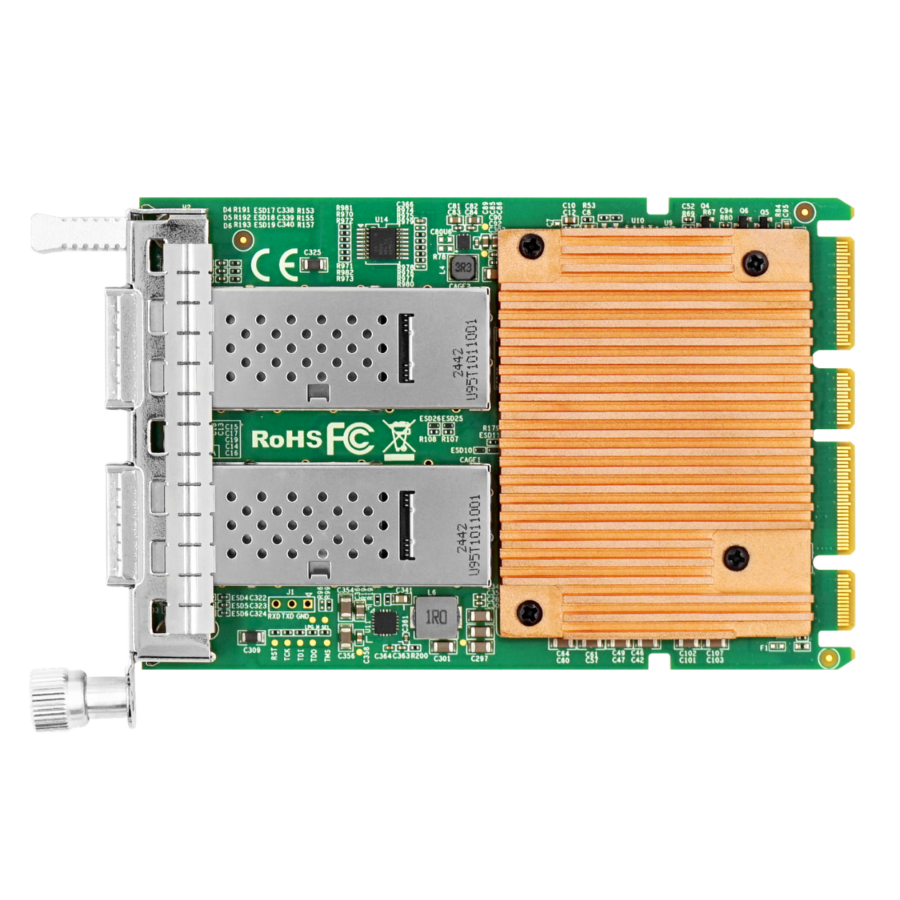

כרטיס רשת OCP 3.0 כולל שתי יציאות QSFP28 ומבוסס על בקר Intel E810-CAM2.
תומך במהירויות העברת נתונים של 10/25/50/100Gbps בכל יציאה וברוחב פס כולל של
עד 200Gbps. כולל תמיכה ב־RDMA (RoCEv2/iWARP), SR-IOV ו־Dynamic Device
Personalization. תומך בהחלפה חמה ומתאים למחשוב ענן, מערכות אחסון וסביבות HPC.
When AI/ML training clusters and cloud data centers face bandwidth bottlenecks, legacy
network interfaces struggle to keep pace with massive data flows. The LRES3026PF-OCP
addresses this by delivering high-density 100G connectivity in a compact OCP 3.0 form factor,
ensuring seamless integration into modern server architectures without sacrificing performance.
Built on the Intel E810-CAM2 controller, this adapter provides dual QSFP28 ports supporting
100/50/25/10Gbps speeds, enabling up to 200Gbps total aggregate bandwidth. This capacity
eliminates network congestion for high-performance computing tasks, while RDMA support
(RoCEv2/iWARP) enables low-latency, CPU-bypassing data transfers that significantly reduce
processing overhead.
Optimized for cloud networking, storage systems, and HPC environments, the card supports
hot-plug functionality to simplify maintenance and reduce downtime. With advanced features
like SR-IOV and Dynamic Device Personalization, the LRES3026PF-OCP ensures efficient
resource utilization and robust packet classification for demanding enterprise workloads.
Controller & Interface
LRES3026PF-OCP – Controller & Interface Specifications
| Model |
LRES3026PF-OCP |
| Controller |
Intel E810 |
| Adapter Type |
OCP 3.0 |
| Form Factor |
SFF |
| Host Connector |
PCIe 4.0 x16 |
Ports & Speed
LRES3026PF-OCP – Ports & Speed Specifications
| Connectors |
QSFP28 |
| Port Count |
Dual-port |
| Link Speed |
100/50/25/10Gbps |
Protocol Support
LRES3026PF-OCP – Protocol Support Specifications
| IEEE Standards |
IEEE 802.3, IEEE 802.3Qaz, IEEE 802.3x, IEEE 802.3by, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1p, IEEE 802.3cd, IEEE 1588v2 |
Feature Support (Yes)
LRES3026PF-OCP – Feature Support (Yes) Specifications
| Functional Features |
PXE, UEFI, NCSI, WoL, SR-IOV, 1588 PTP, SMbus, FRU, ScanChain, HotSwap, RDMA (iWARP/RoCEv2), Jumbo Frames (9.7KB) |
Physical & Environmental
LRES3026PF-OCP – Physical & Environmental Specifications
| Power Consumption |
31.24W (Max) |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
-40°C to 70°C |
| Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35°C |
| PCB Size |
115*76mm |
| Certification |
FCC, CE, RoHS |
Supported Systems
LRES3026PF-OCP – Supported Systems Specifications
| OS Support |
Windows, Windows Server, Deepin, VMware ESXi, RHEL/CentOS, NewStart OS, Ubuntu, UOS, FusionOS, FangdeOS, KylinOS, OpenEuler, Debian, iKuai Router OS, SUSE, FreeBSD |
