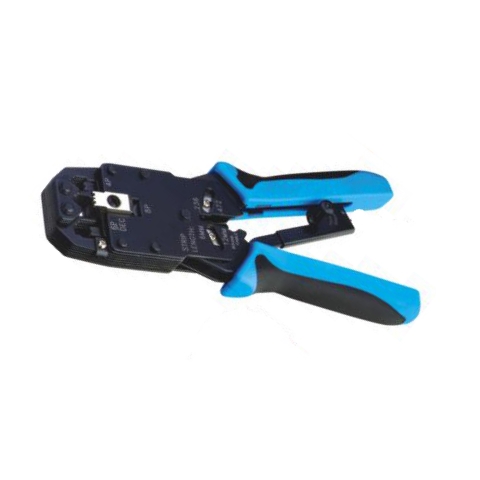

Modular Crimping Tool

Modular Crimping Tool for easy installation and terminating Ethernet patch cables
& telephone cables of custom length. Suitable for RJ45 (CAT5, CAT5e, CAT6,
CAT6a) Connector ends, RJ11 and RJ12 connectors.

The crimping tool include:

• 6Pin – RJ11 / RJ12 Cavity
• RJ45 Ethernet Cavity
• Round Cable Stripper
• Safety Cup
• Cable Cutter
• Ratchet

Instructions for use:

1. Put the cable into the stripping port and tap on the crimper, rotate it one turn.

2. Take off cable shell, untwist the pair.

3. Arrange the wires flat and push them into the plug.

4. Place the connector into the slot, crimpe and cut the wires.
