תיאור המוצר
קונסולת LCD קדמית בגודל 17 אינץ’ כוללת מקלדת, עכבר ומסך עם KVM HDMI
ל־16 פורטים, לנוחות וגמישות בשילוב. המקלדת ניתנת לפירוק ותומכת ב־9 שפות
שונות, וכוללת ממשק USB נוסף לעכבר. המערכת תומכת ברזולוציית 1080p עם
תצוגה מיטבית של 1920×1080@60Hz ותמיכה מקסימלית של 4K@30Hz במודול.
ניתן לעבור בין מחשבים באמצעות כפתורים קדמיים, מקשי קיצור ותפריט OSD, ללא
צורך בהתקנת תוכנה. המוצר תומך במגוון מערכות הפעלה, כולל Windows,
Linux, Mac ו־Sun, עם אפשרויות שליטה והגדרת אבטחה מתקדמות.

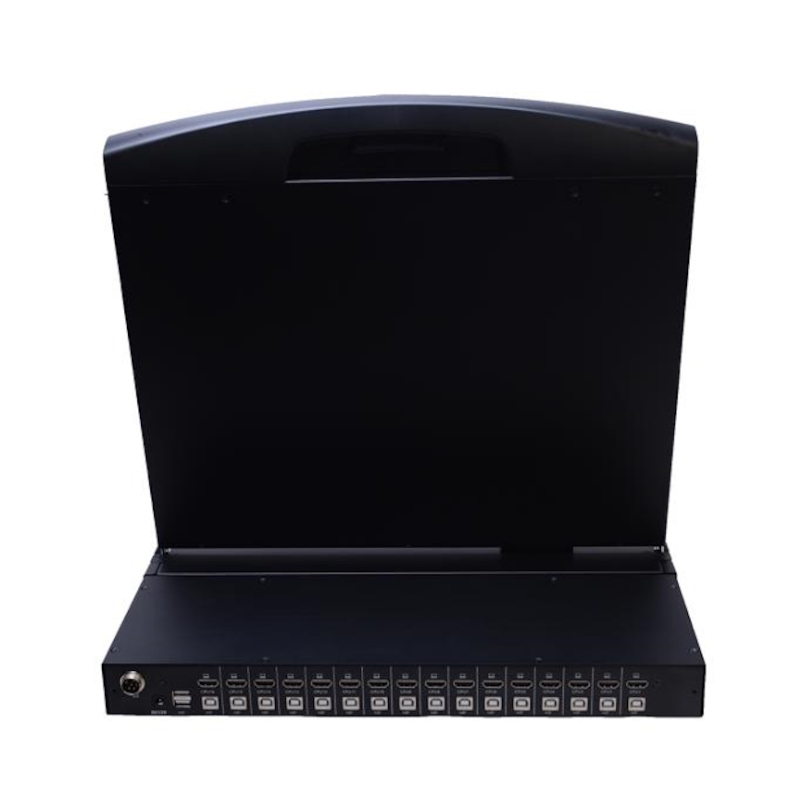

17” HDMI LCD KVM Switch 16 Ports
LCD Monitor Features:
- Front LCD Console (keyboard, mouse, monitor17” )+ 16 port HDMI KVM – very
flexible and convenient for combination. - Keyboard is with demountable design, with 9 different languages:
- American, English, German, French, Spanish, Swiss, Turkish, Russian, Italian.
- Extra USB mouse interface.
- Support 1080p resolution.
- Total length: 611m; fit for 800-1200mm cabinet.
HDMI KVM Module Features:
- Single USB console control 16HDMI interface computer and two additional USB device
- Supports USB TYPE A interface type keyboard and mouse device
- HDMI LCD Console resolution in Optimum:1920×1080@60Hz
- KVM module resolution in Max: 4K@30HZ(3840×2610@30HZ
- Switch the computer through the front panel buttons, keyboard hotkeys and screen menu (OSD)
- Connect to the controlled device for BIOS-level access without worrying about the risk of viruses and Trojans
- The controlled computer does not need to install any software and drivers, and the controlled computer directly recognizes KVM.
- Upgrade remote network control mode by extending IP BOX
- Support OSD to set user login mode and increase KVM login security requirements
- Support widescreen resolution
- Support DDC communication to adapt to different graphics devices
- Auto scan function monitors all computer operations
- Support for cross-platform operations – Windows, Linux, Mac*, and Sun*
17” High-Definition Monitor Specification:
| Type | 17.3” Wide-Screen LCD Console | |
| LCD Monitor | Screen | 17.3” Screen, 16:9 |
| Video | Wide AHVA TFT-LCD | |
| Visible Square | 381.888(H) x 214.812(V) | |
| Resolution | 1920*1080 @60HZ | |
| Support Color | 16.7M(RGB 6-bit data+ HiFCR data) | |
| Contrast | 600 : 1 (Typ) | |
| Back light | LED | |
| Pixel Pitch | 0.1989(per one triad) x 0.1989 | |
| LED MTBF | 100,000 hours | |
| Input power | 12V | |
| Keyboard (demountable design) | Keyboard | 100Keys, detachable (9 different languages for choose) |
| Compatible IBM/AT | Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10 | |
| Port | Standard PS/2; USB | |
| Using life | >1,000,000 Times | |
| Mouse | Type | Touch Screen |
| Port | Standard PS/2 | |
| X/Y Resolution | >1000dots/inch, (40×40/mm) | |
| Using life | >1,000,000 Times | |
| Installation Dimension (mm) | 407 x 445 x 45 | |
| Weight | 8.5kg | |
KVM Module Specification:
| Type | 16Port | |||
| Computer Connection | 16 | |||
| Port Selection | OSD Menu, Front panel switches, Hot Key | |||
| Connector | Console Connector | Monitor | 1 x HDMI Female | |
| Keyboard | 1 x USB Type A Female | |||
| Mouse | 1 x USB Type A Female | |||
| PC Connector | Monitor | 16 x HDMI Female | ||
| Mouse/Keyboard | 16 x USB TYPE B Female | |||
| Power | Power Supply | 1 x DC Jack | ||
| Key switch | Connection Port Selection | 16 x keys | ||
| KVM Switch Reset | 1 x Semi-embedded keys | |||
| LED Instruction | Selected | 16 x Green | ||
| Online | 16 x Red | |||
| Simulation Method | Keyboard & Mouse | USB | ||
| Max Resolution Video | 4K@30HZ (3840*2610@30HZ) | |||
| Scan interval | 3, 5, 10, 15, 20, 30, 40, 60 seconds(Default 3 Seconds) | |||
| Operating Environment | Operating temperature | 0-50℃ | ||
| Storage temperature | -20-60℃ | |||
| Humidity | 0-80%RH,No Condensation | |||
| Physical Properties | Housing | metal | ||
| Dimensions (mm) | L 432 x W 155 x H 44 | |||
| Product weight:(kgs) | 3.88 Kg | |||
מידע
| מחבר | HDMI, USB |
| רזולוציה | 1920x1080@60Hz |
| משקל המוצר | 8.5 גרם |
| יצרן / מותג | Luggar |
