Description:

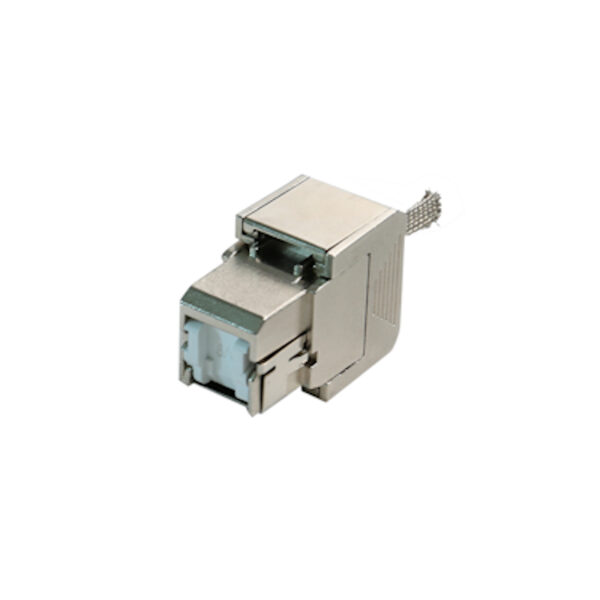

This CAT6A STP Keystone Jack with 3M Shape with rear shield Band, is a high-performance keystone jack designed
for use in structured cabling systems. It is ideal for establishing reliable and secure Ethernet connections in both
residential and commercial environments. Commonly used in patch panels, wall plates, and surface mount boxes,
this jack provides a stable interface for terminating network cables and supports high-speed data transmission.
Its robust construction ensures long-term durability and optimal signal integrity, making it a trusted solution for IT
professionals, installers, and system integrators.
Features:
- Shield: Zinc Die Casting
- Housing: High-impact Flame Retardant Polycarbonate, UL94V-0
- Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
- IDC Contact: Phosphor Bronze
- Insertion life: ≥1000 mating cycles
- Operating Temperature Range: -60℃ to 80℃
- IDC Accept: 22–26 AWG
- Wire Scheme: T568A/B
- Insulation Resistance: 500Ω
- Current Rating: 1.5Amps
- DC Resistance: 0.1 ohm MAX
- Voltage: 150 VAC MAX
- Plug Retention Force: 89N
